Premium Quality Replacement Part
Rear Brake Drums & Seals
Compatible with Following Honda Models :
Rancher 420 TRX420FM 4×4 2007-2013
Rancher 420 TRX420TM 2×4 2007-2013
Rancher 420 TRX420FE ES 4×4 2007-2013
Rancher 420 TRX420TE ES 2×4 2007-2013
Rancher 420 TRX420FPE ES Power Steering 4×4 2009-2013
Rancher 420 TRX420FPM ES Power Steering 4×4 2009-2013

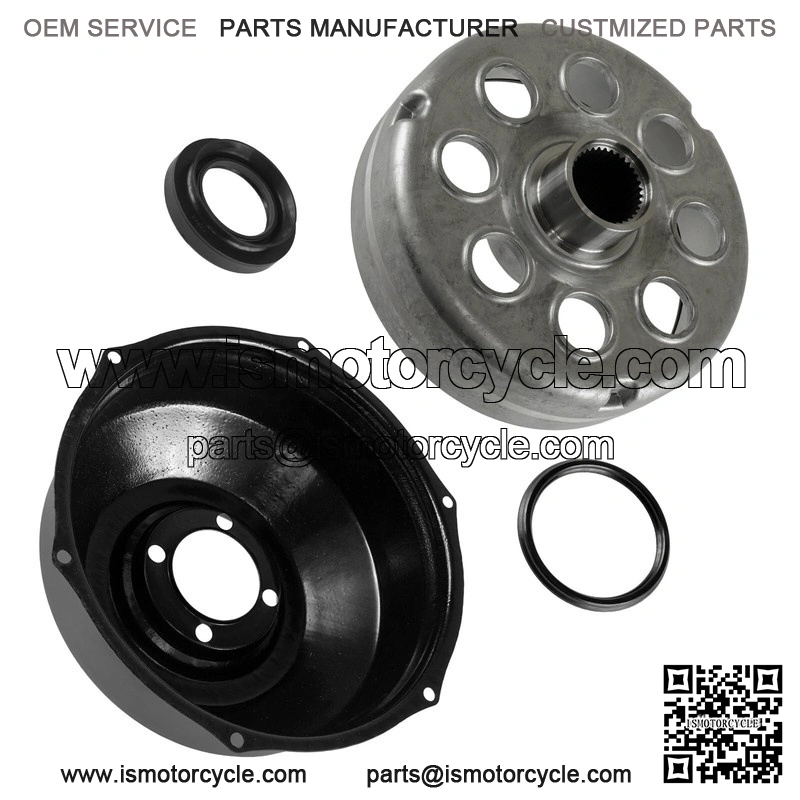

Order Includes :

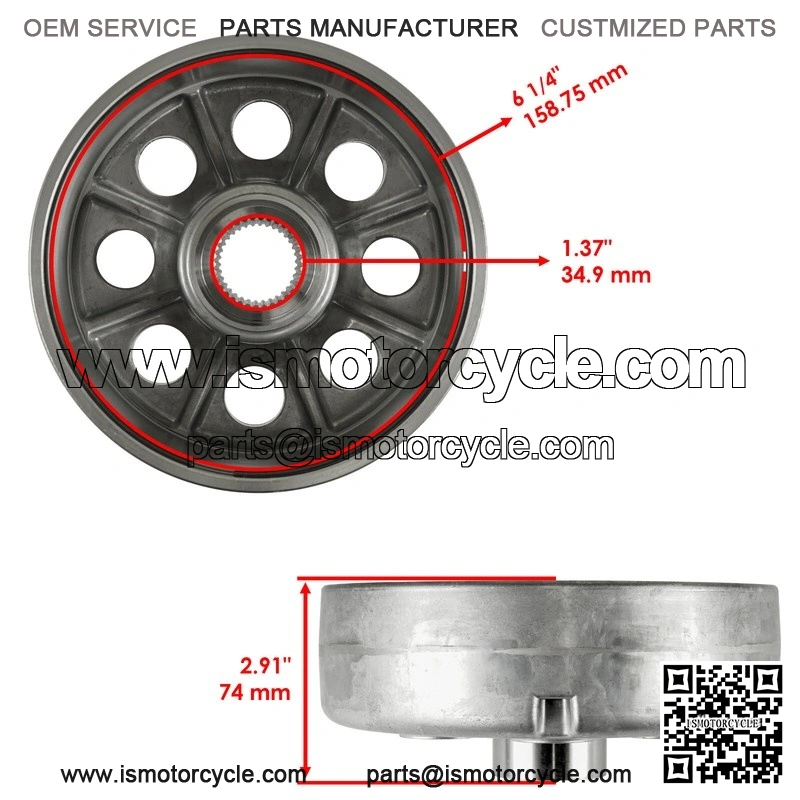

1x Rear Brake Drum : 43620-HP5-600
Height : 74mm – 2.91 in
Inner Diameter : 34.9mm- 1.37 in
Outer Diameter : 158.75mm – 6 1/4 in

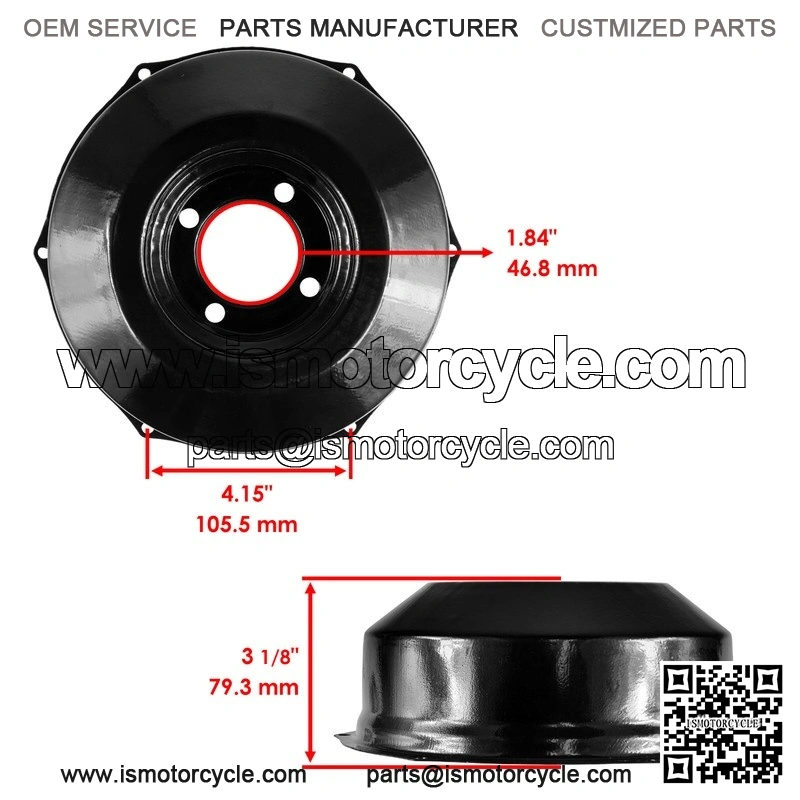

1x Rear Brake Drum Cover : 40520-HP5-600
Inner Diameter : 46.8mm – 1.84 in
Height : 79.3mm – 3 1/8 in

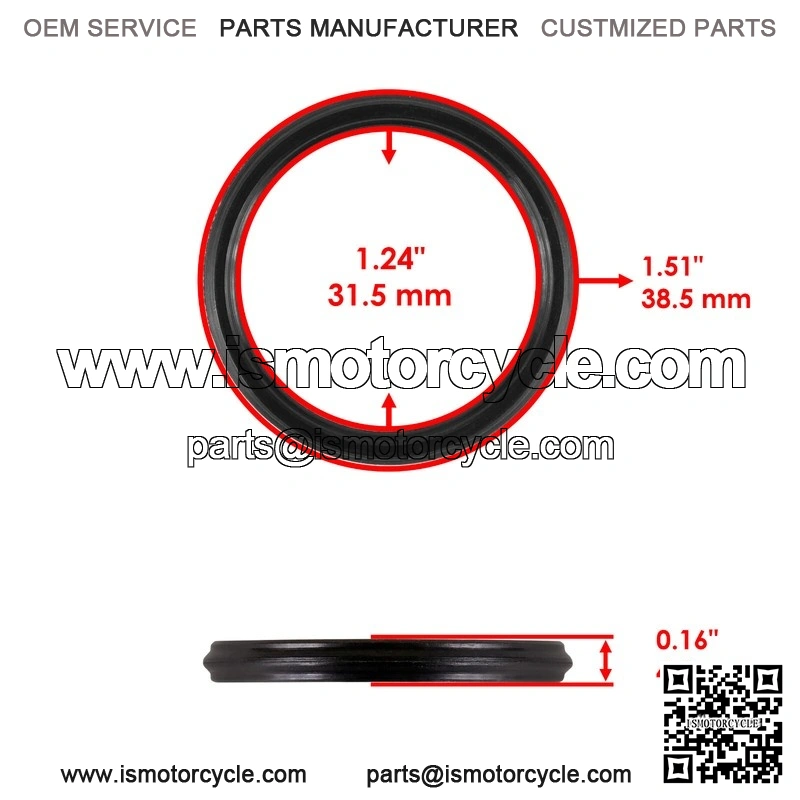

1x Seal : 91351-HB3-004
Inner Diameter : 31.5mm – 1.24 in
Outer Diameter : 38.5mm – 1.51 in
Width : 4.3mm – 0.16 in

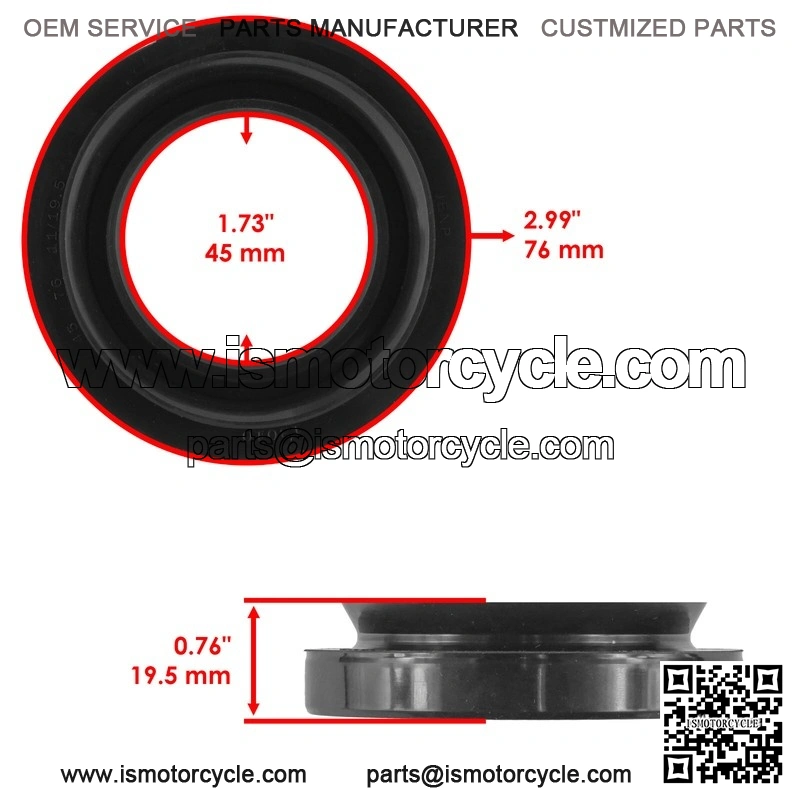

1x Seal : 91253-HC4-003
Inner Diameter : 45mm – 1.73 in
Outer Diameter : 76mm – 2.99 in
Width : 19.5mm – 0.76 in
