Front Axles with Bearing Kits for Honda Foreman, Rincon & Rubicon 500/680
Front Axles with Bearing Kits for Honda Foreman, Rincon & Rubicon 500/680 - Image 2
Front Axles with Bearing Kits for Honda Foreman, Rincon & Rubicon 500/680 - Image 3

Front Axles with Bearing Kits for Honda Foreman, Rincon & Rubicon 500/680

SKU Z.20472 44350-HN8-A41, 44220-HN8-A41 Category Tags ,

Front Axles with Bearing Kits for Honda Foreman, Rincon & Rubicon 500/680

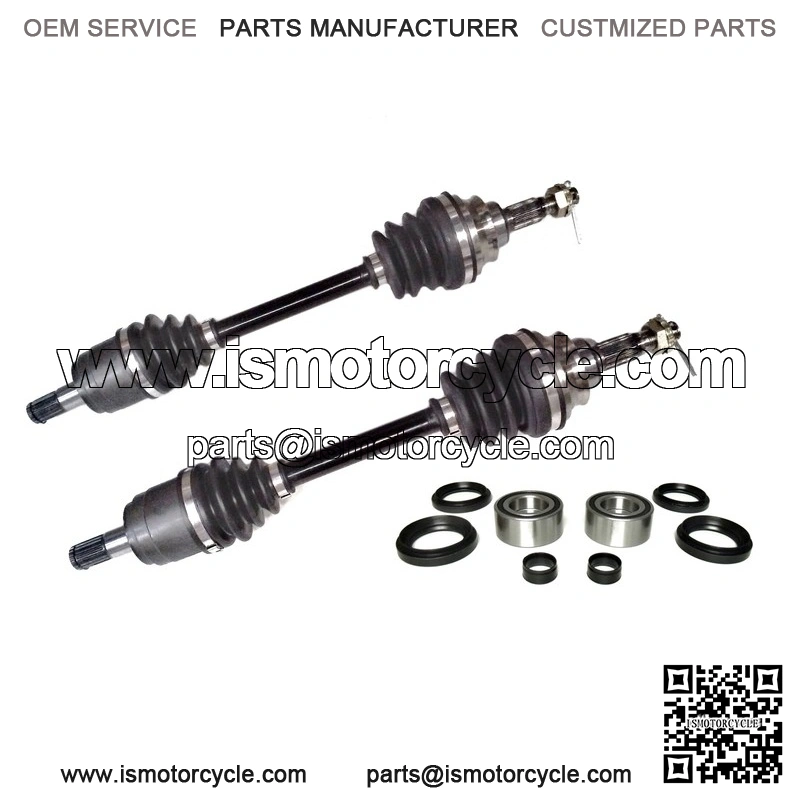

This is a set of new CV axles & wheel bearing/seal kits for a Honda ATV.They fit FRONT, LEFT & RIGHT on the following 4×4 models:2005-2006 & 2011-2013 Foreman 500, 2005 Rincon 650, 2006-2007 & 2010-2023 Rincon 680, 2005-2007 & 2011-2014 Rubicon 500*Not intended for use in lifted vehiclesProduct features:
Stronger than OEM chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear and puncture resistance
High speed bearings manufactured for long life
Double lip seals made to keep grease in and dirt out
Inboard CV joint spline count: 20 (both)
Outboard CV joint spline count: 21 (both)
Compressed overall axle length: Left – 475.5 mm, Right – 494 mm

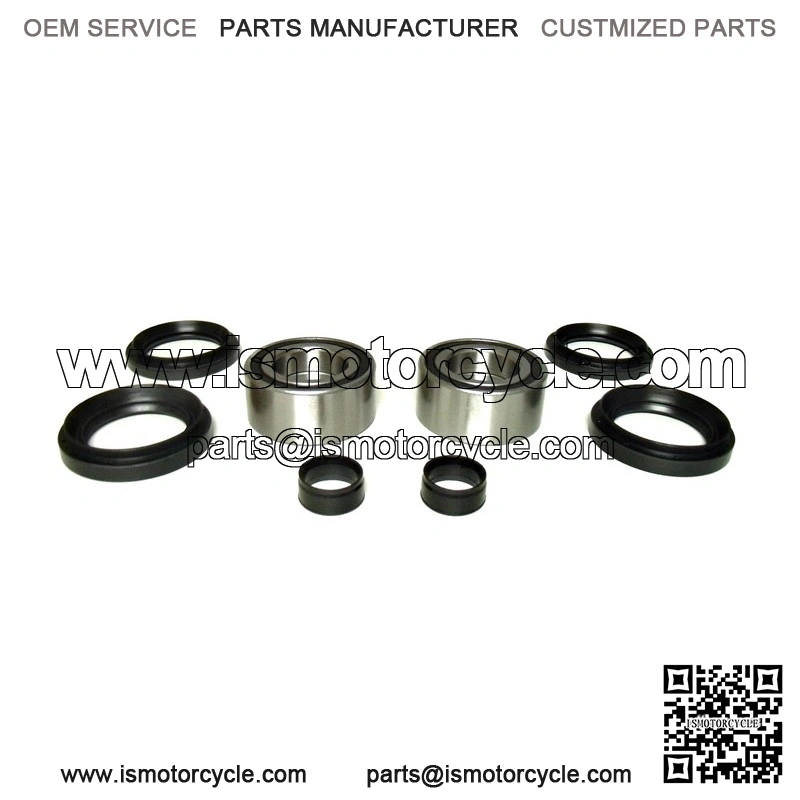

Replaces OEM # (left) 44350-HN8-A41 44220-HN8-A41, (right) 44250-HN8-A41, 44250-HN8-A42, 44250-HN8-A43 (bearings & seals) 91051-HA7-651, 91209-HA7-773, 91256HP0A00
