Set of CV Axles for Polaris, 2010-2016 Ranger 800 6x6, Front Middle Rear

Set of CV Axles for Polaris, 2010-2016 Ranger 800 6×6, Front Middle Rear

SKU Z.20749 1332606, 1332856 Category Tags ,

Set of CV Axles for Polaris, 2010-2016 Ranger 800 6×6, Front Middle Rear

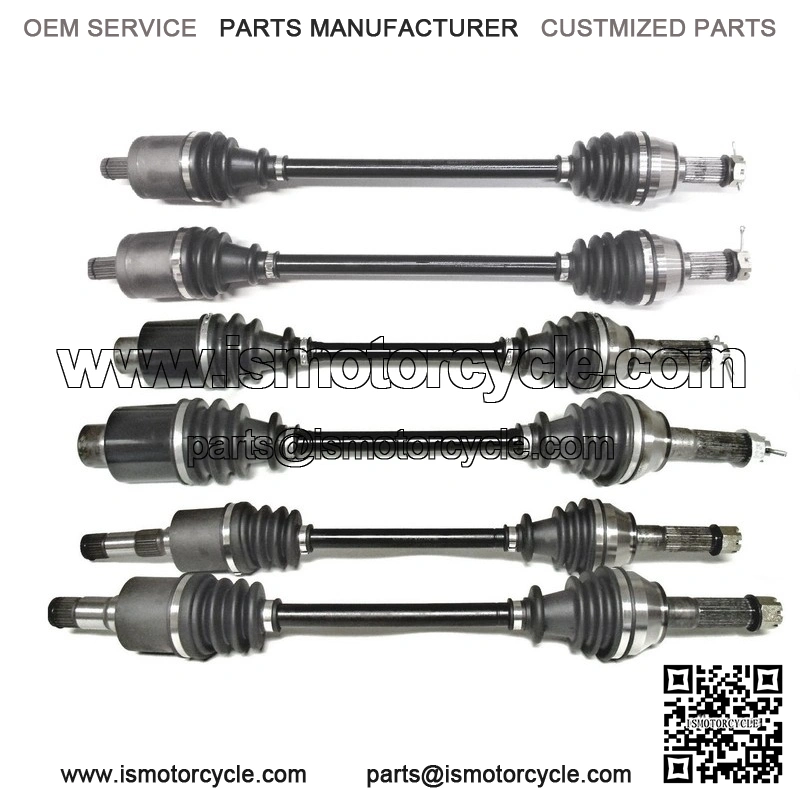

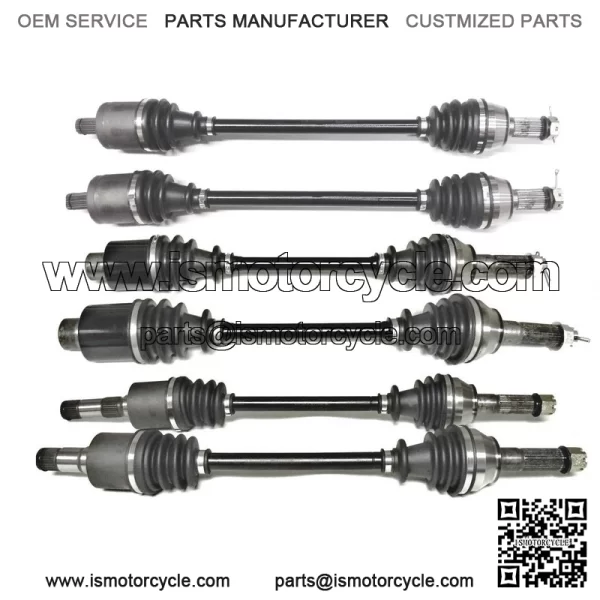

This is a set of 6 fully-assembled CV axles for a Polaris UTV.

They fit the following models:

2010-2017 Ranger 6×6 800

*Made as an OE replacement, and is not intended for lifted/ modified vehicles

Product features:

Stronger than OEM chromoly forged steel axle bars

Greased with a moly based grease to provide superior joint lubrication

Fitted with neoprene CV boots for added wear & puncture resistance

Inboard CV joint spline count: Fronts – 22, Mids – 26 (female type), Rears – 27

Outboard CV joint spline count: 26 (all)

Compressed overall axle length (mm): FL/FR: 664, ML/MR: 616, RL: 705, RR: 660
