Set of Front Axles & Wheel Bearing Kits for Yamaha Rhino 450 / 660 04-09

Set of Front Axles & Wheel Bearing Kits for Yamaha Rhino 450 / 660 04-09

SKU Z.20781 5UG-F510F-20-00, 5KM-2510J-20-00 Category Tags ,

Set of Front Axles & Wheel Bearing Kits for Yamaha Rhino 450 / 660 04-09

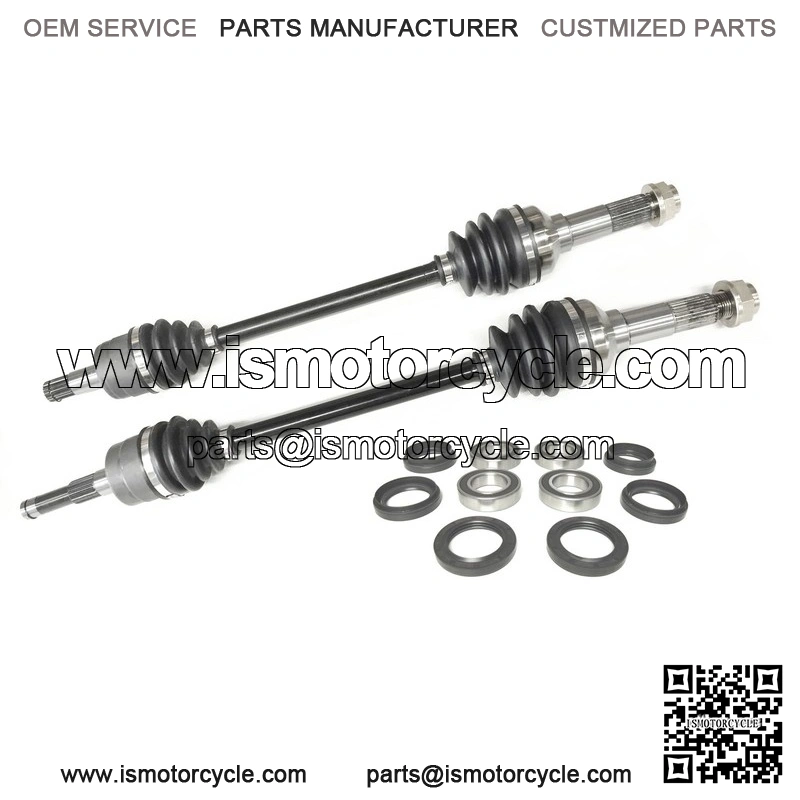

This is a set of new Front CV axles & wheel bearing/seal kits for a Yamaha UTV.They fit the following 4×4 models:2006-2009 … Rhino 4502004-2007 … Rhino 660*Not intended for use on lifted vehiclesProduct features:
Stronger than OEM chromoly forged steel axle bar
Greased with a moly based grease to provide superior joint lubrication
Fitted with neoprene CV boots for added wear and puncture resistance
High speed bearings manufactured for long life
Double lip seals made to keep grease in and dirt out
Inboard CV joint spline count: 21 (both)
Outboard CV joint spline count: 27 (both)
Compressed axle length: Left – 613 mm, Right – 651 mm
Replaces Yamaha OEM # (axles) 5UG-F510F-20-00, 5KM-2510J-20-00, 5UG-F518G-00-00, 5UG-F518G-10-00, 5UG-F518G-20-00, (bearings & seals) 93306-00612-00, 93102-38383-00, 93102-38417-00
